About this trailer

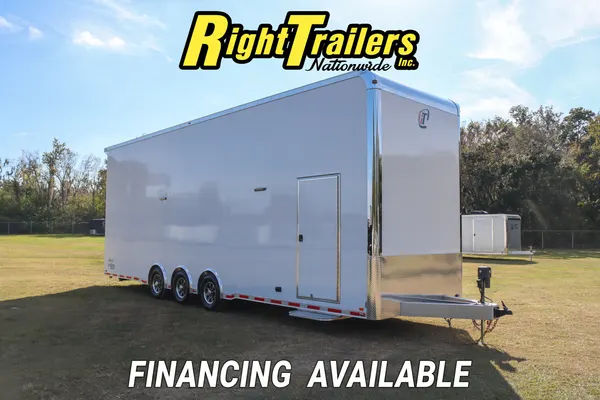

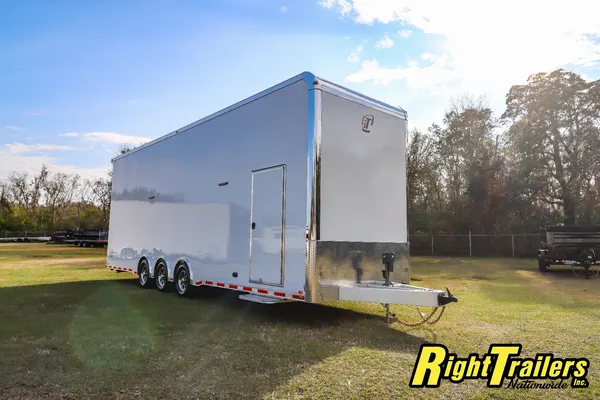

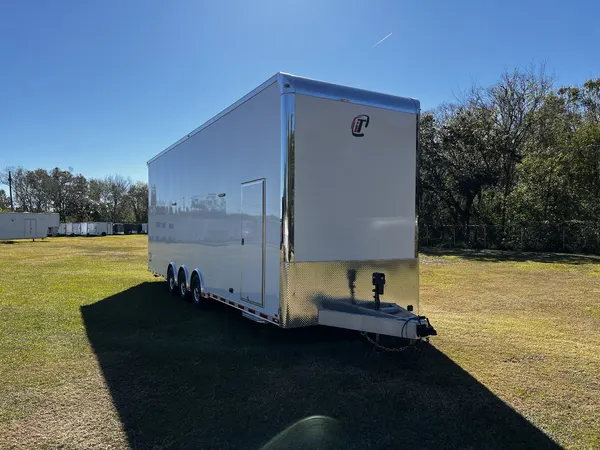

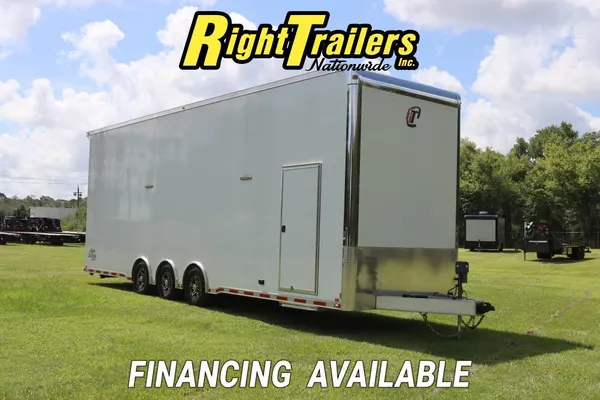

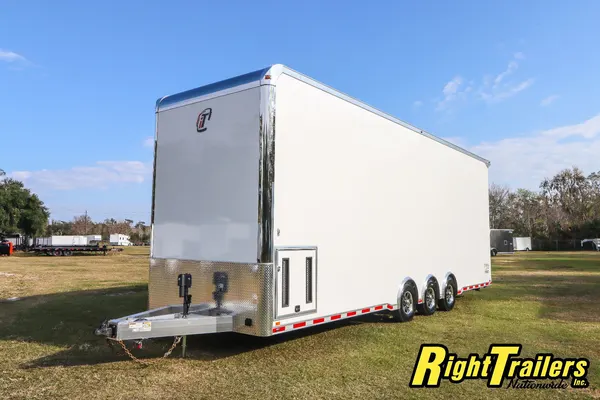

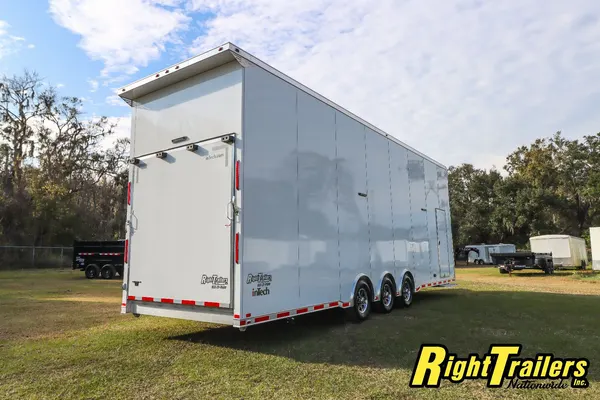

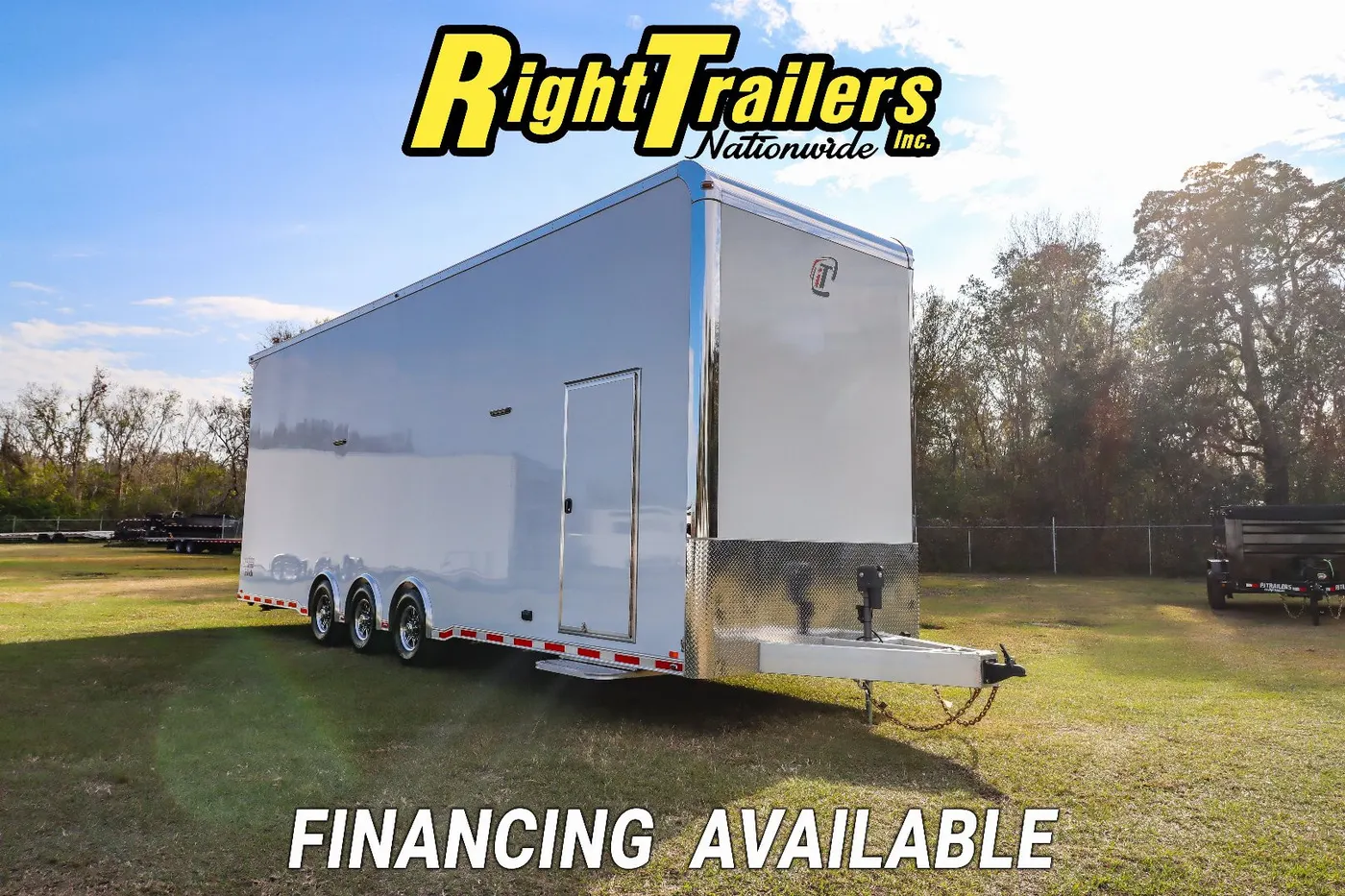

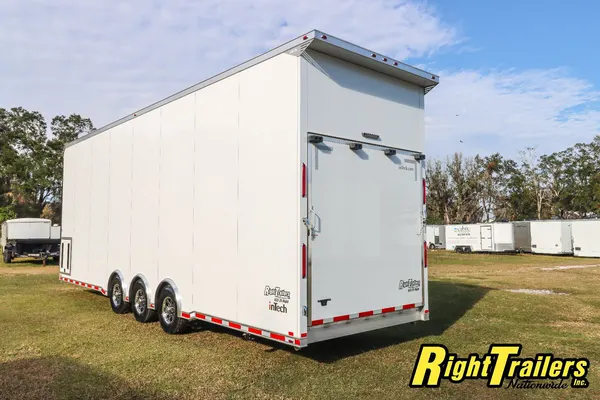

This inTech 8.5x32 stacker is on order and available through our Lakeland, FL location, with delivery available nationwide. The all-aluminum construction — full perimeter tube frame, screwless exterior and interior, one-piece roof — keeps weight down while the 21,000-lb. GVWR and triple 7,000-lb. Dexter torsion axles with electric brakes on all three give you the capacity to haul serious hardware. Every axle runs a spread design, which improves stability and tire wear on long hauls.

The 16-foot EZ-Load tilting split rail lift handles up to 6,000 lbs. and includes four recessed 5,000-lb. D-rings on the lift floor and four more on the main floor, so your tie-down points are where you need them. The 8-foot upper and lower aluminum cabinet package with HDPE countertop gives you functional workspace without bolting in aftermarket furniture. Winch plate prep and an attic with rope rings round out what a working race team actually needs.

Features and build

  • 8.5' x 32' InTech Stacker
  • Full Perimeter All-Tube Aluminum Frame
  • Triple Tube A-Frame with Extended Tongue
  • Screwless/Rivetless .040 Aluminum Exterior
  • Screwless Aluminum Interior Walls & Ceiling
  • One-Piece Aluminum Roof
  • Extruded Aluminum Floor

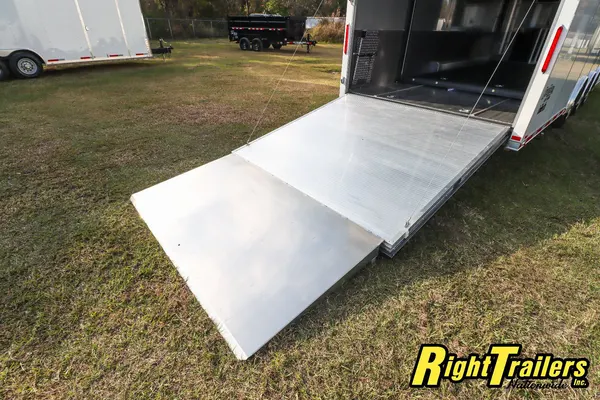

  • Extruded Aluminum Ramp
  • One-Piece Aluminum Transition Flap
  • 4' Interior Beavertail

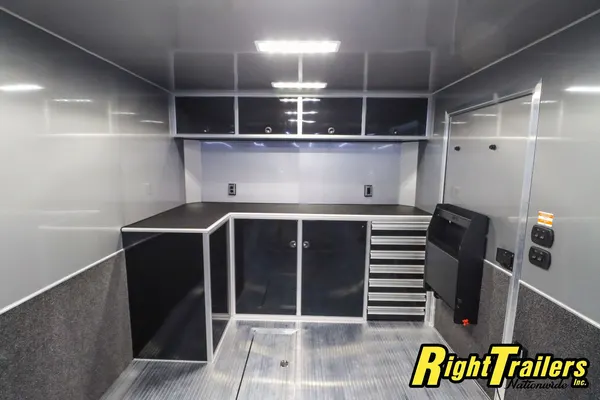

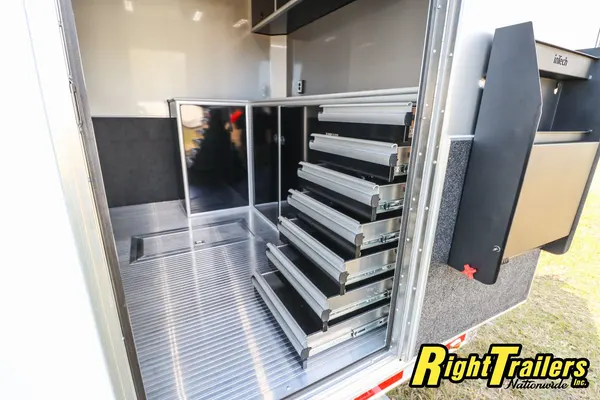

  • 8' Lower Aluminum Cabinet with Black HDPE Countertop
  • 8' Upper Aluminum Cabinet with Top-Hinged Doors & Gas Shocks
  • Clear Anodized Cabinet Trim with Slam Latches

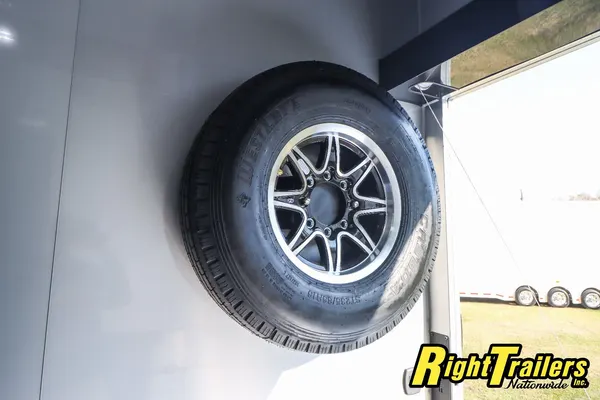

  • Aluminum Spare Tire with Wall Mount
  • Winch Plate Prep

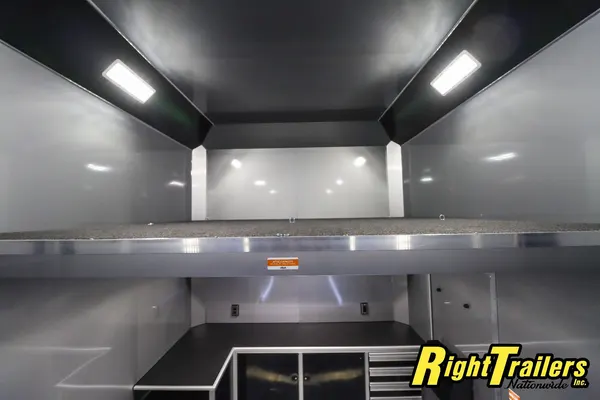

  • Light-Duty Attic with Grey Carpet & (9) Rope Rings

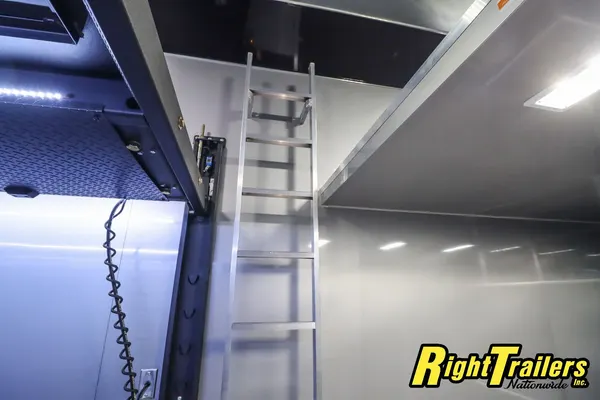

  • Fixed Interior Ladder
  • Rear Caster Wheels
  • Wheel Skirts Around Axles

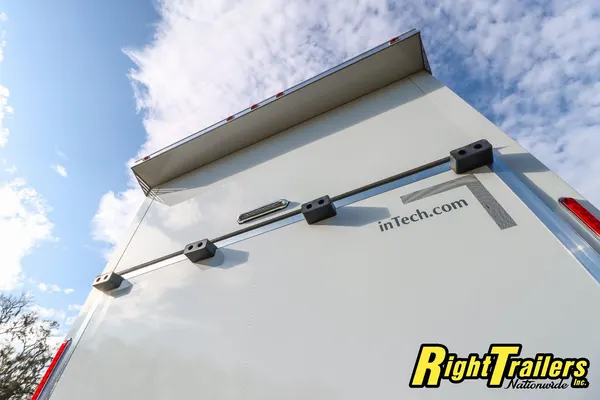

  • InTech Rear Spoiler
  • Stainless Steel High-Polish Front Verticals & Radius Corners
  • Polished Cast Aluminum Corners
  • 36" ATP Wraparound Stone Guard
  • Loading & Access

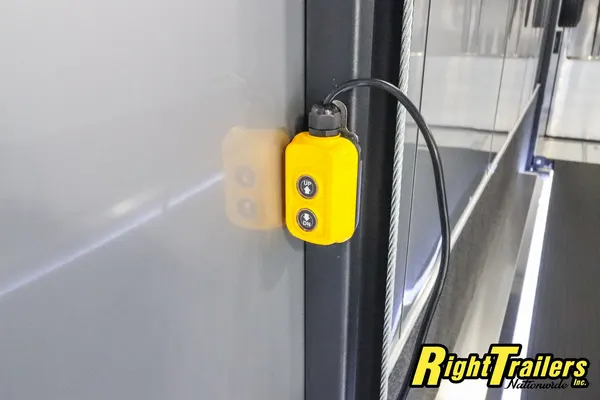

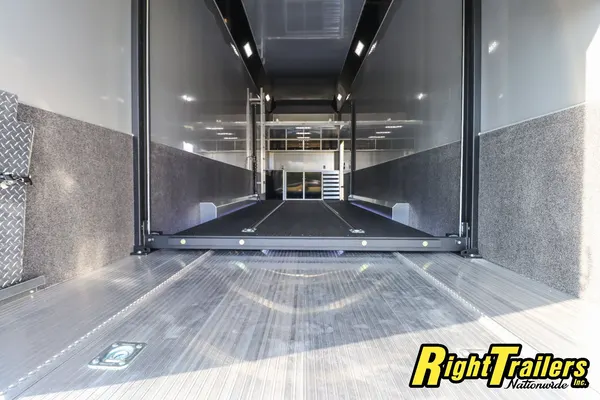

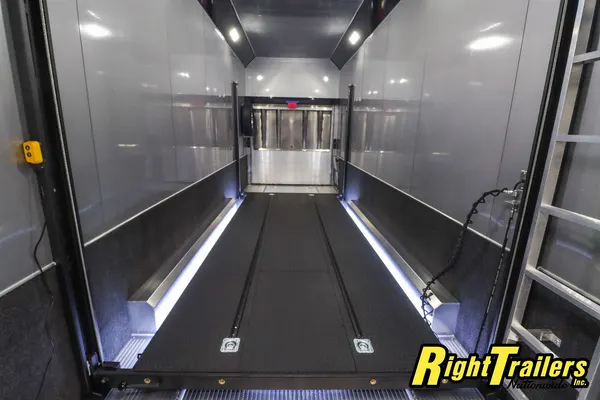

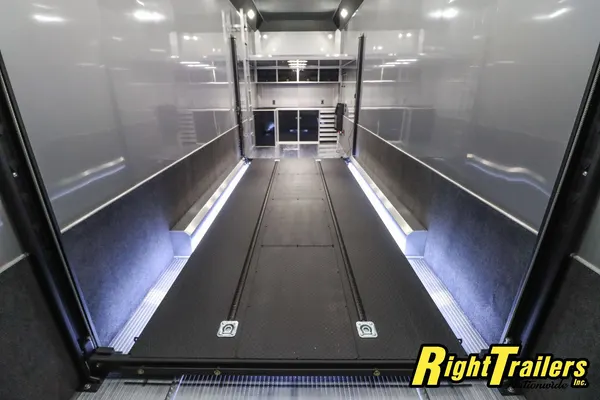

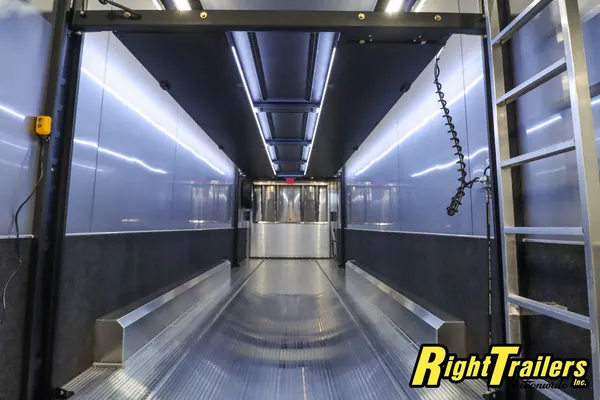

  • 16' EZ-Load Tilting Split Rail Lift (6,000 lb. Capacity)
  • Low-Profile Lift Posts
  • (4) 5,000 lb. Recessed D-Rings on Lift Floor
  • (4) 5,000 lb. Recessed D-Rings on Main Floor

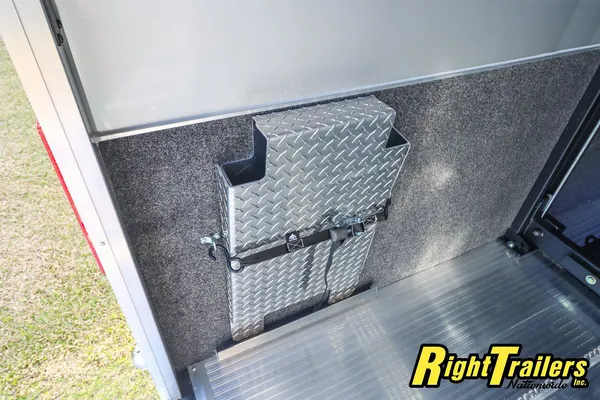

  • 32" Removable Lift Ramps with Wall Storage

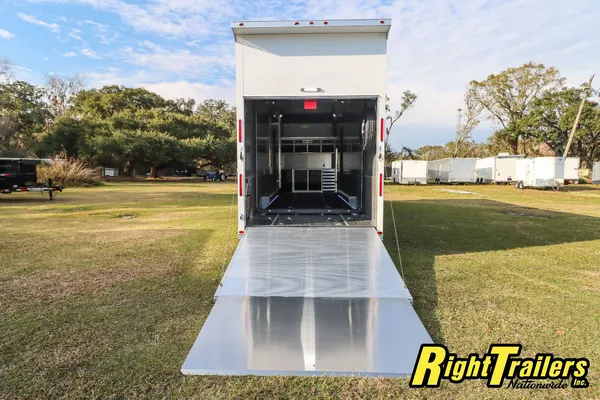

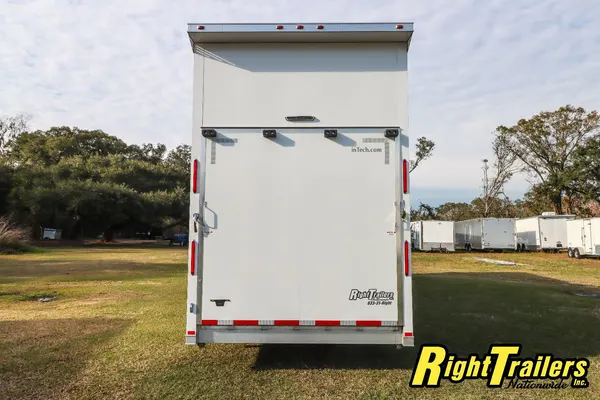

  • Rear Ramp Door with Gapless Continuous Hinge

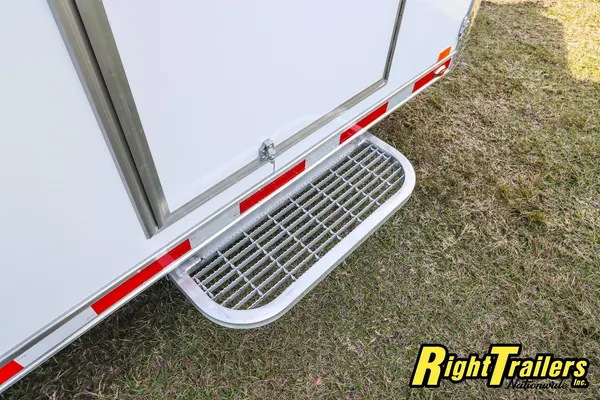

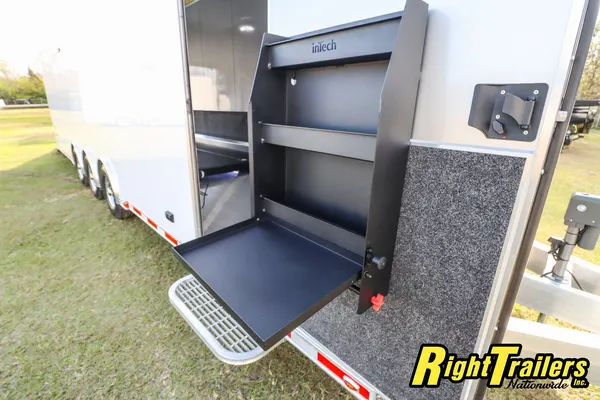

  • 36" Entrance Door with Slide-Out Aluminum Step
  • RV Flush Lock Entrance Door
  • Stainless Steel Paddle Latches
  • Rear Manual Stabilizer Jacks
  • Axles, Tires & Wheels

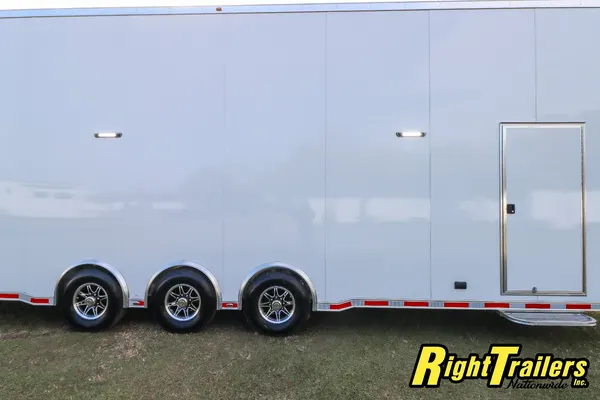

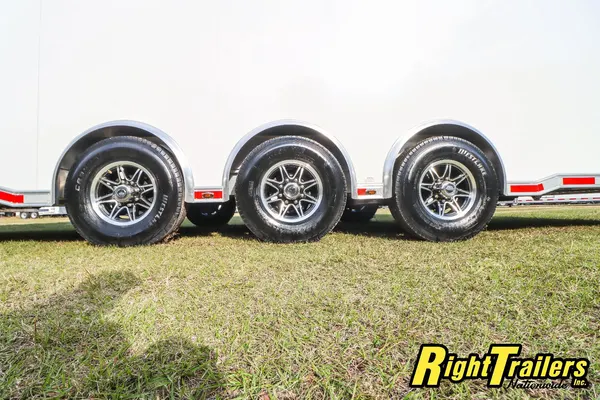

  • Triple Dexter Torsion Axles
  • Electric Brakes on All Axles
  • Spread Axle Design

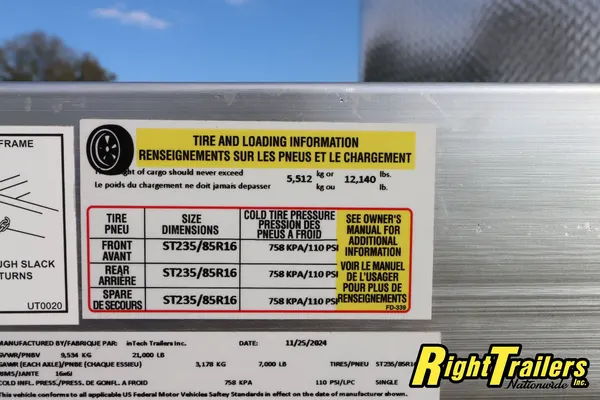

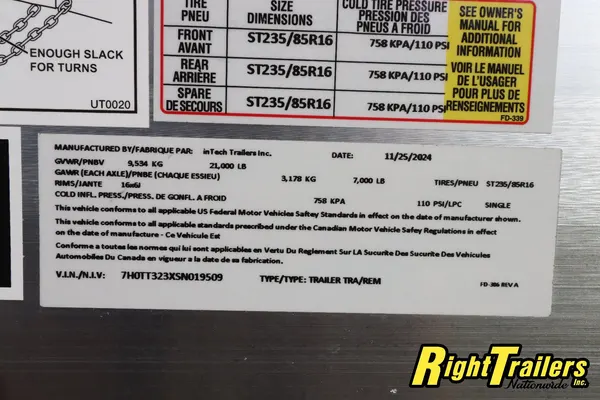

  • ST235/85R16 Tires
  • Aluminum Wheels
  • Smooth Aluminum Wheel Boxes

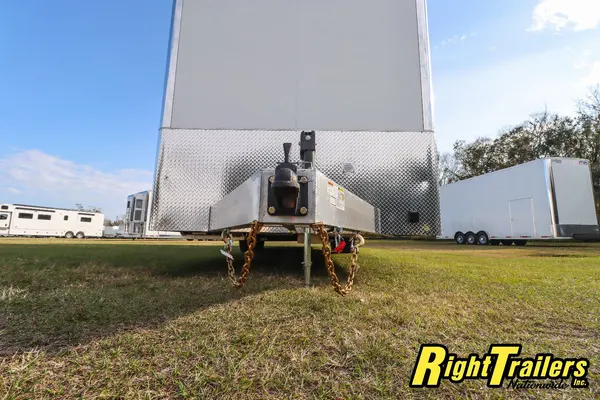

  • Premium Tongue Package

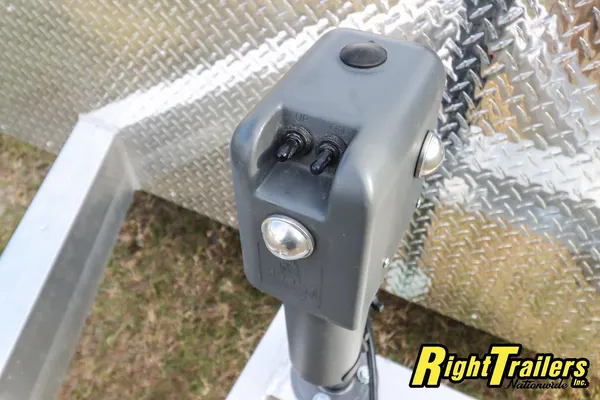

  • 4,500 lb. Electric Tongue Jack
  • 2-5/16" Ball Coupler
  • Breakaway Battery Kit
  • Safety Chains
  • Electrical & Lighting
  • 30-Amp Load Center
  • 60-Amp Converter/Charger
  • 12V Fuse Panel
  • 12V Deep Cycle Battery with Vented Box

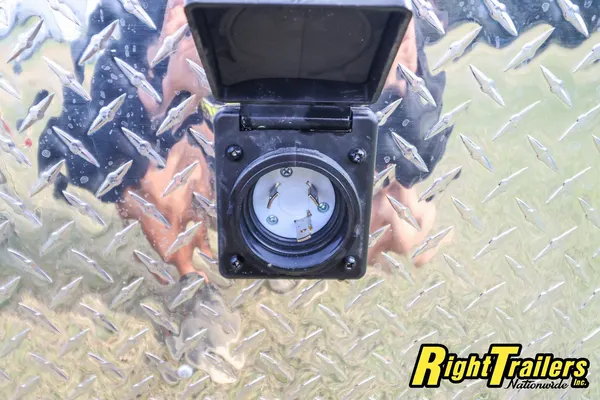

  • Motor Base Plug with 25' Shore Cord
  • (4) 120V Interior Outlets

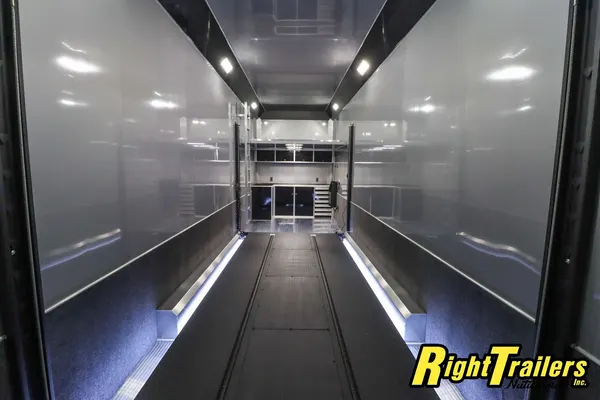

  • (8) 18" LED Cove Lights
  • (2) 18" LED Lights Under Attic
  • (2) LED Flood Lights on Curb Side
  • Rear LED Flood Light (Activates in Reverse)
  • LED Clearance Lights

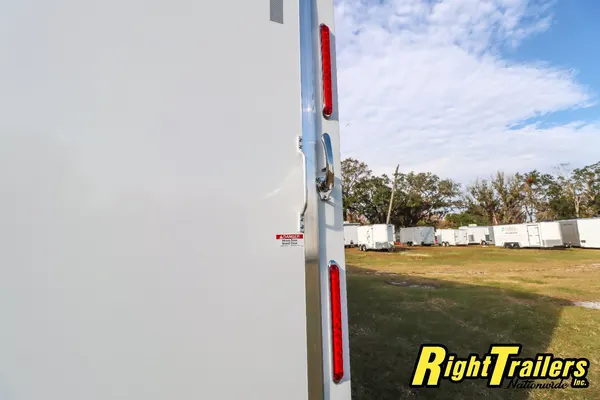

  • Dual LED Slimline Tail Lights
  • 12V LED Light Strip Under Lift
  • Dimensions
  • 11' Interior Height
  • 27'7" Clear Floor Space from Cabinets to Rear
  • 7' Height Under Loft
  • Rear Door Opening: 7'5" Wide x 7'3" High
  • 3 Year Manufacturer's Warranty
  • 5 Year Axle Warranty
